Engel 12 volt DC freezers
Great for fishing cabin,
RVs, and marine use

Engel 12 volt AC/DC freezers


These Engel refrigerators/freezers are of original German design, with compressors first patented nearly 40 years ago.  They have since been reformulated and perfected in Japan.  The new Engel compressors are now better than ever--quieter and more  efficient than their predecessors.  To date, over 3 million units have been sold world-wide, in Europe, the USA, Africa, Australia, and Japan.


Engel DC freezers

Click on model number for picture.

Engel DC freezers

Models:

Engel

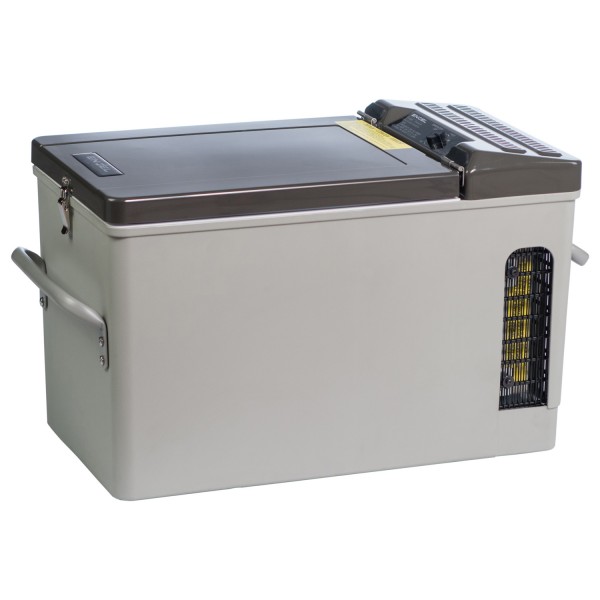

MT17F-U1

Engel

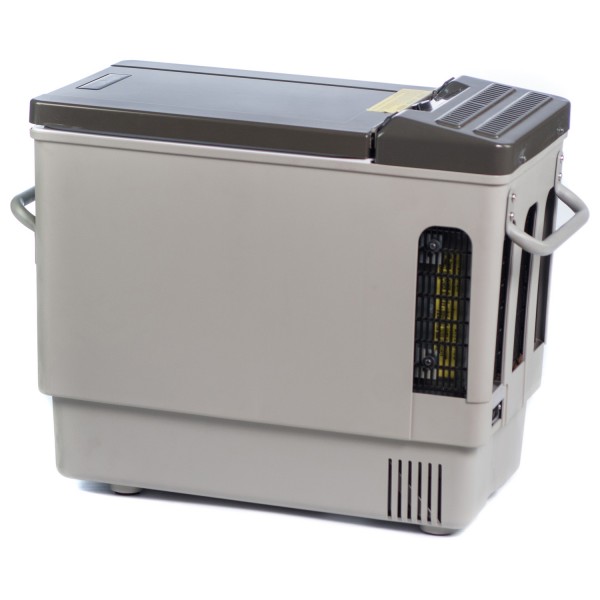

MT27F-U1

Engel

MT35F-U1

Engel

MT45F-U1

Engel

MT60F-U1
*

Engel

MT80F-U1

Power
Consumption
(at 12V)
.9 - 3.9A .9 - 3.1A .7 - 2.5A .7- 2.5A 1.4 - 3.5A .7 - 3.6A
Volume--Qts. 16 22 34 43 64 84
Weight--Lbs. 34 34 48 53 69 97
Inside
DIMS--Inches
11.5 x 8 x 10 11.5 x 8 x 13.6 15.4 x 10.8 x 12 15.4 x
10.8 x 16
20.1 x
14.9 x 12.4
20.1 x
14.9 x 16.9
Outside
DIMS--Inches
21.2 x 12
  x 14
21.2 x 12 x 17.5 25.5 x 14.3 x 16 25.5 x 4.3 x 20 31.1 x 19.3 x 17.4 31.1 x 19.3 x 21.7
Freezing
Ability
               All units are adjustable from 40F to 0F.
Temp Control                     All units offer a variable thermostat.
Exterior
Material
ABS
Plastic
ABS
Plastic
Powder-
Coated
Steel
Powder-
Coated
Steel
Powder-
Coated
Steel
Powder-
Coated
Steel
Available
Colors
2 Tone
Gray
2 Tone
Gray
2 Tone
Gray
2 Tone
Gray
2 Tone
Gray
Refrigerant
Gas
               All units utilize CFC-free 134A refrigerant gas.
Input Rating (@ DC12V) 3.1A 3.1A 2.5A 2.5A 3.6A 4.2A
12V Power Lead Cable            All  units come with a detachable 9 ft. power cord.
Fuse 10A thermal 10A thermal 10A external 10A external 10A thermal 10A thermal
Shipping
DIMS--Inches
23 x 14 x 15 14 x 23 x 19.5 29 x 17 x 19 29 x 17 x 23 36 x 24 x 20
Shipping
Weight--Lbs.
40 41 59 66 82
Shipping
Weight--Kg.
18.18 18.6 26.8 30 37.27
Manufacturer's
 Warranty
1 year 1 year 2 years 2 years 2 years 2 years
Cost (excluding freight) $814 $840 $868 $910 $1320

$1635


     *
The Engel MT-60 is available as a combination refrigerator/freezer (MT-60F-U1-C).  Refrigerator capacity is 34 quarts, freezer capacity 26.5 quarts.  Price is $1436.
      The cooling ability specifications from the above chart (from 40 to 0F) are based on an ambient temperature of 86F.  Higher temps will result in more power needed, and lower temps will result in less power used.

A Transit Slide Lock is available for the MT27, MT35, and MT45 models, including a mounting bracket to safely lock your Engel and a quick-release feature. Cost is $85.00.

NOTE:
The Engle 65 and  80 ship via truck freight; all other units ship via UPS ground--call for freight costs. Appliances are not stocked locally and ship from our suppliers located back east.

*********


Engel MB40V Drop-in DC Fridge/Freezer

Engel 12 volt AC/DC freezers

Because space is at a premium in the galley, every inch is used to its utmost advantage.  The new Engel MB40V built-in DC fridge/freezer provides exceptional performance that can be configured to take advantage of available space, featuring either a FIXED OR REMOTE COMPRESSOR

The top-open layout keeps the food box colder than traditional front-open models, and its unique lid is removed for easier access when loading or unloading contents.  With a capacity of 40 quarts, there's plenty of room for perishables, and users can take full advantage of the available internal space using the included height-adjustable basket.

Its patented swing motor compressor runs quietly on any 12V/24V DC system and uses amperage sparingly--just 1.4 to 2.8 amps per hour--to provide optimum performance (40% less power consumption than traditional compressors).  The compressor unit and coils are separate and can be located either under or away from the food box, allowing maximum flexibility in use of available space.  Minimal ventilation is required, and a waste heat fan is included.

The top lid, made of durable, scratch-resistant polyethylene, can double as a countertop or a cutting board.

The MB40V weighs 44 pounds with external dimensions 19.7" x 13.4" x24.8", internal dimensions 16.5" x 10.2" x 13.4".


Engel MB40V Price:  $995, excluding shipping.  Click on pictures above for larger images.
